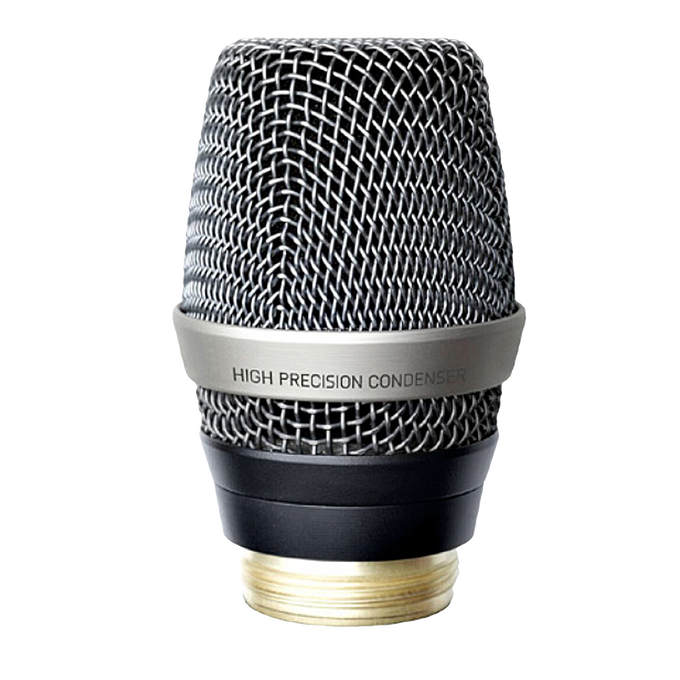

C7 WL1

Wireless powersound

The AKG C7 WL1 reference condenser microphone head delivers premium studio-quality condenser sound and hassle-free operation on any stage. With pristine clarity and sparkling high end, the C7 allows lead and background vocals to shine through. And thanks to specially engineered circuitry and custom-designed components, C7 prevents feedback and pop noise from interfering with your performance. The C7 WL1 microphone features a custom-tuned supercardioid condenser capsule with hand-selected components, so your voice is reproduced with pristine clarity and sparkling highs. And the C7 handles incredibly high sound pressure levels, for maximum fidelity during your loudest performances. The C7 WL1 innovative open-space capsule uses a specially designed inner-capsule holder and three window ports to reduce air turbulence and inner reflections at the backside of the capsule. This creates an extremely consistent supercardioid polar pattern throughout the entire frequency spectrum, for extraordinary feedback and spill rejection. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Allgemeine Spezifikationen

AKG Wireless System Compatibility

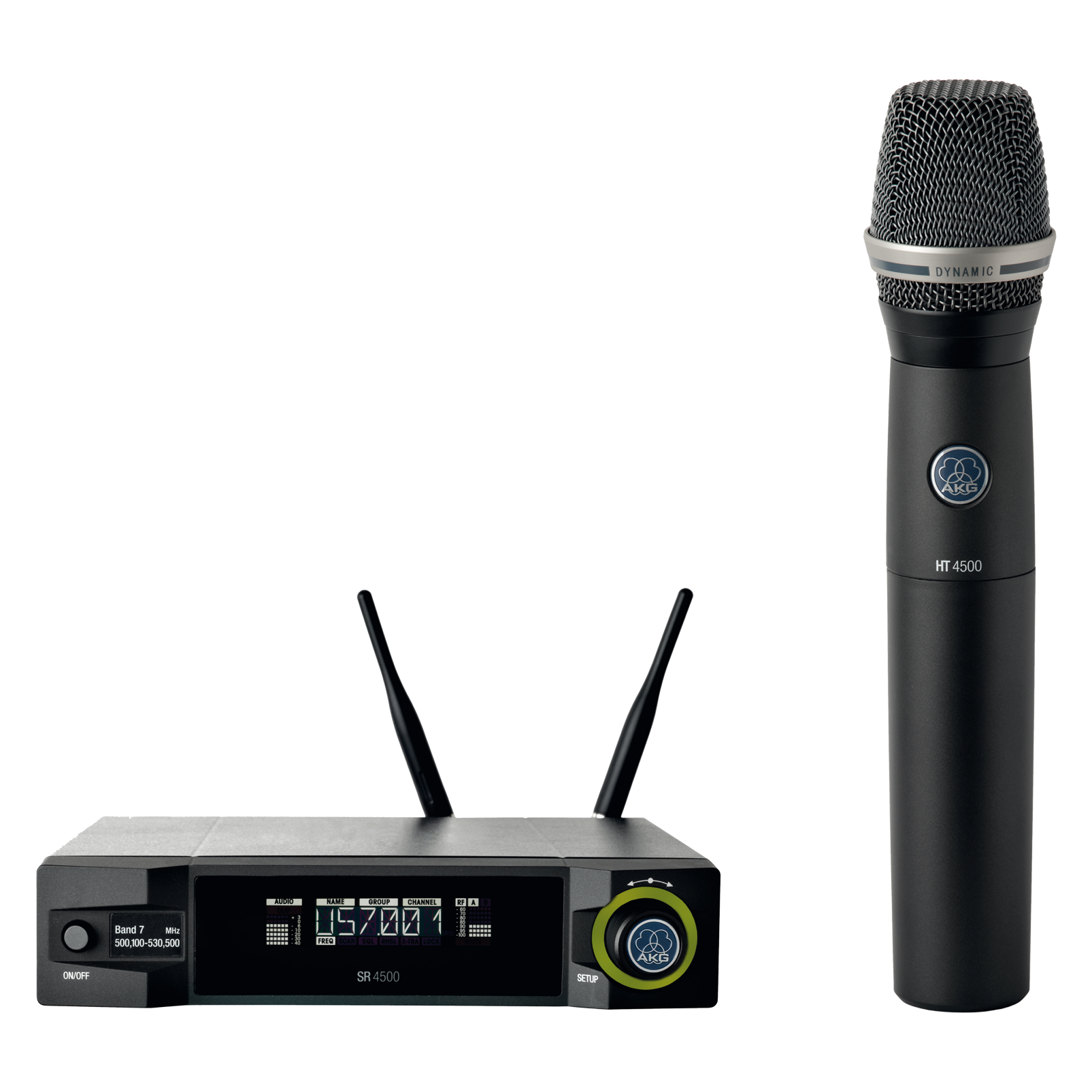

DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)

Type

Custom-tuned 3/4" back electret condenser

Polar Pattern

Supercardioid

Capsule

24-carat gold-plated capsule

Isolation

Mechano-pneumatic shock absorber suspension and integrated pop noise filter

Grille

Spring-steel wire-mesh

Frequency Response

20 Hz – 20 kHz

Sensitivity

4 mV/Pa

Maximum SPL

150 dB (A) @ 1%

Equivalent noise level

21 dB (A) to IEC 60286-4

Anwendung

Live Vocal

Live Instrument

Pro Studio

Project Studio
